The custom function button can be programmed to perform a single action from a wide range of options. This provides the means to customise the MAVIS interface so you can have the control you want, directly on the main interface.

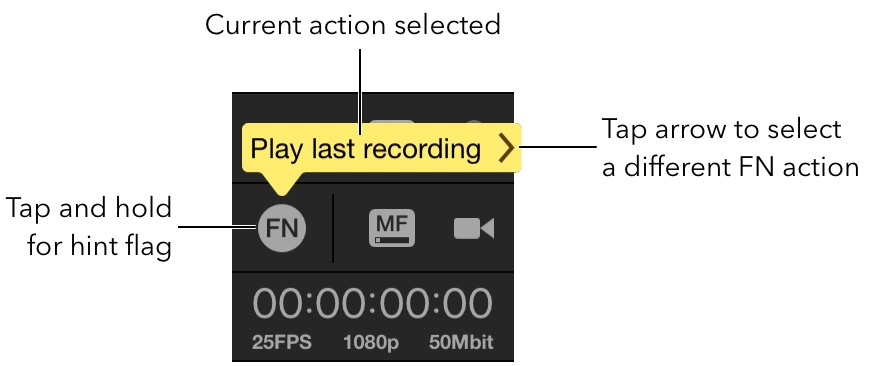

How to set the FN button
1) Tap and hold FN button until the hint flag appears
2) Tap arrow to open up FN action list
3) Select FN action from list
How to set the FN button from the settings menu
1) Tap on the Settings icon at the top left of the screen.
2) Tap on FN within the CAMERA section
3) Select FN action from list
FN Actions
Viewfinder Actions
- Toggle focus peaking
- Toggle false colour
- Toggle expanded focus
- Toggle zebras
- Toggle guides
- Toggle bars
- Swap focus peaking and false colour
Camera control Actions
- Swap between servo and manual zoom
- Toggle stabilize
- Activate full auto
- Activate manual exposure
- Activate auto exposure
- Activate target exposure
- Activate manual focus
- Activate auto focus
- Activate target focus
- Activate auto white balance
- Activate colour set 1
- Activate colour set 2
- Activate colour set 3
- Swap between colour set 1 & 2
- Swap between colour set 1 & 3
- Swap between colour set 1 & auto
- Swap between colour set 2 & 3
- Swap between colour set 2 & auto
- Swap between colour set 3 & auto
- Store white balance from scene in current colour set
Recording format actions
- Activate recording format 1
- Activate recording format 2
- Activate recording format 3
- Activate recording format 4
- Swap between recording format 1 & 2
- Swap between recording format 1 & 3
- Swap between recording format 1 & 4
- Swap between recording format 2 & 3
- Swap between recording format 2 & 4
- Swap between recording format 3 & 4
Timecode actions
- Swap timecode between time-of-day and offset
- Swap between showing duration and timecode while recording
- Toggle show running timecode (time-of-day only)
Hardware actions
- Toggle light
Menu actions
- Play last recording
Preset actions
- Load preset -> select from saved presets

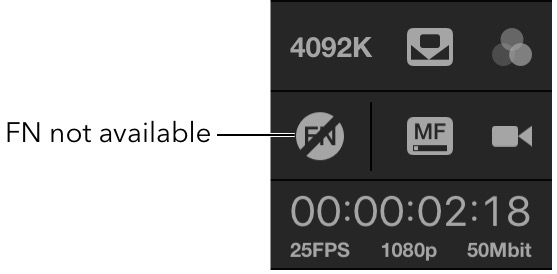

FN not available
If an action is not available (e.g. you are unable to change the recording format while recording) the following icon will show:
